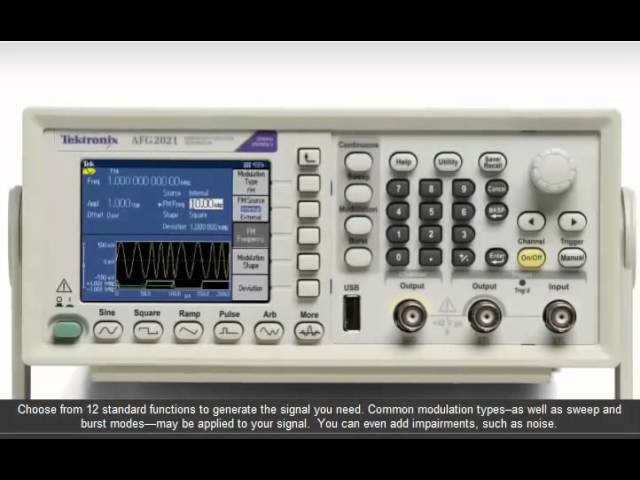

Specifications

General characteristics

Sine wave

1 μHz to 20 MHz

Sine wave in Burst Mode

1 μHz to 10 MHz

Effective maximum frequency out

20 MHz

Amplitude flatness (1 Vp-p)

±0.15 dB (±0.05 dB, typical)

5 MHz to 20 MHz

±0.3 dB(±0.02 dB, typical)

Harmonic distortion (1 Vp-p)

10 Hz to 20 kHz

20 kHz to 1 MHz

1 MHz to 10 MHz

10 MHz to 20 MHz

THD

p-p

Spurious (1 Vp-p)

10 Hz to 1 MHz

1 MHz to 20 MHz

Phase noise, typical

20 MHz: p-p

Residual clock noise

–63 dBm

Square wave

1 μHz to 10 MHz

Rise/fall time

≤18 ns

Jitter (RMS)

Ramp wave

1 μHz to 200 kHz

Linearity

≤0.1% of peak output at 10% to 90% of amplitude range

Symmetry

0.0% to 100.0%

Pulse wave

1 mHz to 10 MHz

Pulse width

30.00 ns to 999.99 s

-- Resolution

10 ps or 5 digits

Pulse duty

0.001% to 99.999% (Limitations of pulse duty width apply)

Edge transition time

18 ns to 0.625 × Pulse Period

-- Resolution

10 ps or 4 digits

Lead delay

-- Range

Continuous Mode: 0 ps to Period Trigger/Gate Burst Mode: 0 ps to Period – [Pulse Width + 0.8 × (Leading Edge Time + Trailing Edge Time)]

-- Resolution

10 ps or 8 digits

Overshoot

Jitter (RMS)

Other waveforms

1 μHz to 200 kHz

Noise bandwidth (-3 dB)

20 MHz

Noise type

White Gaussian

DC (into 50 Ω)

–5 V to +5 V

Arbitrary waveforms

1 mHz to 10 MHz

Arbitrary waveforms in Burst Mode

1 mHz to 5 MHz

Effective analog bandwidth

(–3 dB)

34 MHz

Nonvolatile memory

4 waveforms

Memory: sample rate

2 to 128 k: 250 MS/s

Vertical resolution

14 bits

Rise/fall time

≤20 ns

Jitter (RMS)

4 ns

Amplitude

Range

50 Ω load: 1 mVp-p to 10 Vp-p

Open circuit: 2 mVp-p to 20 Vp-p

Accuracy

±(1% of setting + 1 mV), (1 kHz sine waveform, 0 V offset, >10 mVp-pamplitude)

Resolution

0.1 mVp-p, 0.1 mVrms, 1 mV, 0.1 dBm, or 4 digits

Units

Vp-p, Vrms, dBm (sine wave only)

Output impedance

50 Ω

Load impedance setting

Selectable: 50 Ω, 1 Ω to 10.0 kΩ, high Z (adjusts displayed amplitude according to selected load impedance)

Isolation

peak maximum to earth

Short-circuit protection

Signal outputs are robust against permanent shorts against floating ground

External voltage protection

To protect signal outputs against external voltages use fuse adapter 013-0345-00

DC offset

Range

50 Ω load: ±(5 Vpeak – amplitude Vp-p/2)

Open circuit: ±(10 Vpeak – amplitude Vp-p/2)

-- Accuracy

±(1% of |setting| + 5 mV + 0.5% of amplitude (Vp-p))

-- Resolution

1 mV

Modulation characteristics

AM, FM

Carrier waveforms

All, including ARB, except pulse, noise, and DC

Source

Internal/external

Internal modulating waveform

Sine, square, ramp, noise, ARB (AM: maximum waveform length 4,096; FM: maximum waveform length 2,048)

Internal modulating frequency

2 mHz to 50.00 kHz

AM modulation depth

0.0% to +120.0%

Min FM peak deviation

DC

Max FM peak deviation

10 MHz

Pulse width modulation

Carrier waveform

Pulse

Source

Internal/external

Internal modulating waveform

Sine, square, ramp, noise, ARB (Maximum waveform length 2,048)

Internal modulating frequency

2 mHz to 50.00 kHz

Deviation

0% to 50.0% of pulse period

Sweep

Waveforms

All, including ARB, except pulse, noise, and DC

Type

Linear, logarithmic

Sweep time

1 ms to 300 s

Hold/return time

0 ms to 300 s

Max total sweep time (Sweep + hold + return)

300 s

Resolution

1 ms or 4 digits

Total sweep time accuracy, typical

0.4%

Min start/stop frequency

All except ARB: 1 μHz

ARB: 1 mHz

Max start/stop frequency

Sine: 20 MHz

Square: 10 MHz

ARB: 10 MHz

Others: 200 kHz

Burst

Waveforms

All, including ARB, except noise and DC

Type

Triggered, gated (1 to 1,000,000 cycles or infinite)

Internal trigger rate

1 μs to 500.0 s

Gate and trigger sources

Internal, external, manual trigger

Auxiliary input characteristics

Modulation input

Input range

All except FSK: ±1 V full scale

FSK: 3.3 V logic level

Impedance

10 kΩ

Frequency range

DC to 25 kHz (122 kS/s sample rate)

External triggered/gated burst input

Level

TTL compatible

Pulse width

100 ns minimum

Slope

Positive/negative selectable

Trigger delay

0.0 ns to 85.000 s

Resolution

100 ps or 5 digits

Jitter (RMS), typical

Burst:

10 MHz reference input

Impedance

1 kΩ , AC coupled

Required input voltage swing

100 mVp-p to 5 vp-p

Lock range

10 MHz ±35 kHz

Auxiliary output characteristics

Trigger output

Level

Positive TTL level pulse into 1 kΩ

Impedance

50 Ω

Jitter (RMS), typical

500 ps

Max frequency

4.9 MHz (4.9 MHz to 20 MHz: A fraction of the frequency is output)

Common characteristics

Remote programming

(GPIB, LAN 10BASE-T/100BASE-TX, USB 1.1, compatible with SCPI-1999.0 and IEEE 488-2 standards)

Characteristic	USB	LAN 1	GPIB 1
Function change	95 ms	103 ms	84 ms
Frequency change	2 ms	19 ms	2 ms
Amplitude change	60 ms	67 ms	52 ms
Select user ARB	88 ms	120 ms	100 ms
Data download time for 4k point ARB waveform data (8 KB), typical	20 ms	84 ms	42 ms

1 GPIB and LAN interfaces are only available on the instrument with Option GL.

System characteristics

Frequency setting resolution

1 μHz or 12 digits

Phase (except DC, Noise, Pulse)

Range

–360° to +360°

Resolution

Sine: 0.01°

Other Waveforms: 0.1°

Internal noise add

When activated, output signal amplitude is reduced to 50%

Level

0.0% to 50% of amplitude (Vp-p) setting

Resolution

1%

Main output

50 Ω

Internal frequency response

Stability

All except ARB: ±1 ppm, 0 °C to 50 °C

ARB: ±1 ppm ±1 μHz, 0 °C to 50 °C

Aging

±1 ppm per year

Power source

100 V to 240 V, 50 Hz to 60 Hz or 115 V, 400 Hz

Power consumption

60 W

Warm up time, typical

20 minutes

Power on self diagnostics, typical

Accoustic noise, typical

Display

3.5 in. Color TFT LCD

User interface and help language

English, French, German, Japanese, Korean, Simplified and Traditional Chinese, Russian (user selectable)

Physical characteristics

Dimensions

Height

104.2 mm (4.10 in.)

Width

241.8 mm (9.52 in.)

Depth

419.1 mm (16.50 in.)

Weight

Net

2.87 kg (6.3 lb.)

Shipping

4.72 kg (10.4 lb.)

EMC, environmental, and safety characteristics

Temperature

Operating

0 °C to +50 °C

Non-operating

-30 °C to +70 °C

Humidity

Operating

≤80%, +0 °C to +40 °C, noncondensing

≤60%, +40 °C to +50 °C, noncondensing

Non-operating

5% to 90%,

5% to 80%, ≥+40 °C to ≤+60 °C, noncondensing

5% to 40%, >+60 °C to ≤+70 °C, noncondensing

Altitude

Operating

Up to 3,000 m (9,842 ft.)

EMC compliance

EU Council Directive 2004/108/EC

Safety

UL61010-1; 2004

CAN/CSA C22.2 No. 61010-1; 2004

EN61010-1; 2001

IEC61010-1; 2001
