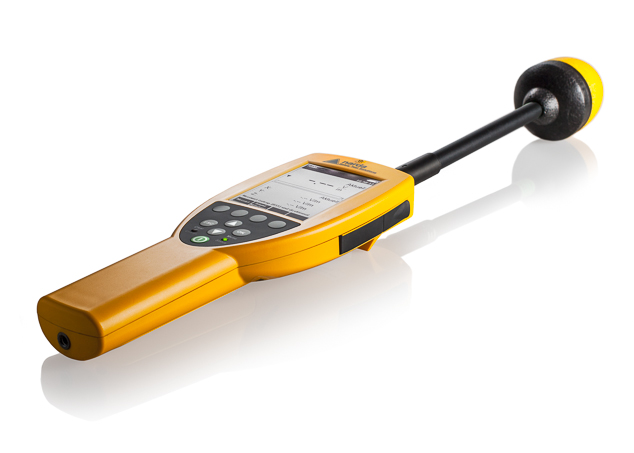

Портативный широкополосный измеритель напряженности поля 100 кГц - 60 ГГц Narda-STS NBM-550

NBM-550
Для увеличения картинки наведите мышкой
NBM-550
NBM-550
НаличиеПо запросу
По запросу
По запросу
По запросу
Измерители напряженности поля NBM-550 Подробнее
Обзор
Свернуть Развернуть
Основные возможности и технические характеристики
Product Features
  • Intelligent probe interface detects probe parameters
  • Fully automatic zero point adjustment
  • Memory for saving up to 5,000 measurement results
  • PC software for convenient data management
  • Voice recording for comments
  • Conditional logging: Measured value saved when a threshold value is exceeded
  • Options:

  • GPS receiver for automatically storing the position data

  • Product description

    NBM-550 is part of the NBM-500 instrument family. It delivers extremely accurate results for electromagnetic field strength measurements. NBM-550 handles applications from a few Hertz through to long wave and on up to high frequency microwave radiation using a selection of interchangeable probes for electric and magnetic fields.

    The field strengths are captured with flat frequency response probes or probes with shaped frequency response, allowing the measurement values to be assessed against an environmental or occupational safety standard. The calibration factors for each probe are stored in the probe itself and are read out and taken into account automatically by the measuring set.

    Frequency response weighted probes for convenient testing.

    There are different personal safety limits at different frequencies. “Shaped probes” take care of the frequency issues for you, providing an easy-to-read display as a % of standard. You don’t have to deal with the actual field strength limits or frequencies, enabling quick and simple measurements even under complex ambient conditions. Narda Safety Test Solutions is the only supplier for shaped probes. Why? We hold the patent for this feature.

    What is a shaped probe?

    The traditionally-used flat frequency response probes have been developed with the aim of providing a probe having as constant sensitivity to magnetic field strength as possible over the usable frequency range. In contrast, Narda’s patented Shaped Probes are constructed in a completely different way. The sensitivity of these probes is designed to match a particular directive or standard. The sensitivity versus frequency (frequency response) of the probe is as closely as possible in inverse proportion to the limit value curve. The measured values are not displayed in V/m or W/m2, but are shown as “% of standard” instead. This makes it very easy to assess the results, particularly in multi-frequency environments as there is no need to worry about the predominant frequencies in the field. A result of less than 100% always means that the limit values are not exceeded anywhere within the entire frequency range of the probe. The “% of standard” display is referred to the power density of the electromagnetic field. The high bandwidth of 300 kHz to 50 GHz of a Narda “Shaped Probe” is unique.

    What’s the reason for the extremely wide bandwidth of Narda’s shaped probes?

    When compared with conventional broadband probes, Narda’s Shaped Probes have a much wider frequency range (e.g. 300 kHz – 50 GHz). The reason for this is the use of a diode-based probe section for the lower frequency range (approx. 300 kHz – 2 GHz) and a thermocouple probe section for the upper frequency range (approx. 300 MHz – 50 GHz). Both parts of the probe have suitable frequency responses which are superimposed after adjustment of the sensitivity and which correspond as closely as possible to the limit value curve of a particular safety standard (e.g. ICNIRP).
    Although the transition region is continuous, Shaped Probes can be considered simply as diode probes below 1.5 GHz and as thermocouple probes above 1.5 GHz.

    What’s the difference between thermocouple and diode-based probes?

    Both types of probe use dipoles to detect the electric field. The dipoles in the thermocouple probes are formed by thermocouples connected in series, which generate a DC voltage proportional to the power density. In the diode-based probes, the dipoles are formed by two equal lengths of wire with a detector diode as rectifier between them. Both these techniques can be used to develop broadband sensors.








    Свернуть Развернуть
    Основные возможности и технические характеристики
    Product Features
  • Intelligent probe interface detects probe parameters
  • Fully automatic zero point adjustment
  • Memory for saving up to 5,000 measurement results
  • PC software for convenient data management
  • Voice recording for comments
  • Conditional logging: Measured value saved when a threshold value is exceeded
  • Options:

  • GPS receiver for automatically storing the position data

  • Product description

    NBM-550 is part of the NBM-500 instrument family. It delivers extremely accurate results for electromagnetic field strength measurements. NBM-550 handles applications from a few Hertz through to long wave and on up to high frequency microwave radiation using a selection of interchangeable probes for electric and magnetic fields.

    The field strengths are captured with flat frequency response probes or probes with shaped frequency response, allowing the measurement values to be assessed against an environmental or occupational safety standard. The calibration factors for each probe are stored in the probe itself and are read out and taken into account automatically by the measuring set.

    Frequency response weighted probes for convenient testing.

    There are different personal safety limits at different frequencies. “Shaped probes” take care of the frequency issues for you, providing an easy-to-read display as a % of standard. You don’t have to deal with the actual field strength limits or frequencies, enabling quick and simple measurements even under complex ambient conditions. Narda Safety Test Solutions is the only supplier for shaped probes. Why? We hold the patent for this feature.

    What is a shaped probe?

    The traditionally-used flat frequency response probes have been developed with the aim of providing a probe having as constant sensitivity to magnetic field strength as possible over the usable frequency range. In contrast, Narda’s patented Shaped Probes are constructed in a completely different way. The sensitivity of these probes is designed to match a particular directive or standard. The sensitivity versus frequency (frequency response) of the probe is as closely as possible in inverse proportion to the limit value curve. The measured values are not displayed in V/m or W/m2, but are shown as “% of standard” instead. This makes it very easy to assess the results, particularly in multi-frequency environments as there is no need to worry about the predominant frequencies in the field. A result of less than 100% always means that the limit values are not exceeded anywhere within the entire frequency range of the probe. The “% of standard” display is referred to the power density of the electromagnetic field. The high bandwidth of 300 kHz to 50 GHz of a Narda “Shaped Probe” is unique.

    What’s the reason for the extremely wide bandwidth of Narda’s shaped probes?

    When compared with conventional broadband probes, Narda’s Shaped Probes have a much wider frequency range (e.g. 300 kHz – 50 GHz). The reason for this is the use of a diode-based probe section for the lower frequency range (approx. 300 kHz – 2 GHz) and a thermocouple probe section for the upper frequency range (approx. 300 MHz – 50 GHz). Both parts of the probe have suitable frequency responses which are superimposed after adjustment of the sensitivity and which correspond as closely as possible to the limit value curve of a particular safety standard (e.g. ICNIRP).
    Although the transition region is continuous, Shaped Probes can be considered simply as diode probes below 1.5 GHz and as thermocouple probes above 1.5 GHz.

    What’s the difference between thermocouple and diode-based probes?

    Both types of probe use dipoles to detect the electric field. The dipoles in the thermocouple probes are formed by thermocouples connected in series, which generate a DC voltage proportional to the power density. In the diode-based probes, the dipoles are formed by two equal lengths of wire with a detector diode as rectifier between them. Both these techniques can be used to develop broadband sensors.








  • NBM-550 Basic Unit
  • Hardcase NBM Series, for up to 5 probes
  • Power Supply 9VDC, 100V-240VAC
  • Battery, rechargeable AA-Size
  • Shoulder Strap, 1m
  • Tripod, Benchtop, 0.16m
  • Cable, USB Interface
  • Software, NBM-TS
  • Operating Manual NBM-550
  • Calibration Certificate
  • Ask your reseller for sets suitable for your application.

  • NBM-550 Basic Unit
  • Hardcase NBM Series, for up to 5 probes
  • Power Supply 9VDC, 100V-240VAC
  • Battery, rechargeable AA-Size
  • Shoulder Strap, 1m
  • Tripod, Benchtop, 0.16m
  • Cable, USB Interface
  • Software, NBM-TS
  • Operating Manual NBM-550
  • Calibration Certificate
  • Ask your reseller for sets suitable for your application.

    Свернуть Развернуть
    Сведения о реестре СИ

    Номер в Госреестре

    Наименование СИ

    Обозначение типа СИ

    Изготовитель

    Срок свидетельства или заводской номер

    Не в реестре
    Свернуть Развернуть
    Сведения о реестре СИ

    Номер в Госреестре

    Наименование СИ

    Обозначение типа СИ

    Изготовитель

    Срок свидетельства или заводской номер

    Не в реестре
    • 06 RF Safety Broadband Meter NBM EMF
    Характеристики
    Загрузить технические характеристики

    NBM-550
    DISPLAY
    Display type Transflective LCD, monochrome
    Display size 10 cm (4“), 240 x 320 dots
    Backlight White LEDs, selectable illumination time (OFF, 5s, 10s, 30s, 60s, PERMANENT)
    Refresh rate 200 ms for bar graph and graphics, 400 ms for numerical results
    Operating languages English, French, German, Italian, Spanish, Simplified Chinese, Turkish, Russian
    MEASUREMENT FUNCTIONS (with high frequency probes)
    Result units mW/cm2, W/m2, V/m, A/m, % (of standard)
    Display range .0001 to 9999, 4 digits, variable or fixed triads can be selected
    Variable triads
    0.01 V/m to 100.0 kV/m
    0.01 mA/m to 265.3 A/m
    0.001 mW/m2 to 26.53 MW/m2
    0.1 nW/cm2 to 2.653 kW/cm2
    0.0001 % to 9999 %
    Fixed triads
    0.01 to 9999 V/m
    0.0001 to 265.3 A/m
    0.0001 to 9999 W/m2
    0.0001 to 9999 mW/cm2
    0.0001 to 9999 %
    Result types (RMS, isotropic) Actual, Maximum, Minimum, Average, Average Maximum
    Result types (RMS, X-Y-Z mode) Actual X, Actual Y, Actual Z (requires a probe with separate axes)
    Time averaging Selectable averaging time, 4 s to 30 min (2 s steps)
    Spatial averaging Discrete or continuously
    Multi-position spatial averaging Averages up to 24 spatially averaged results, each position and total is stored
    History Mode Graphical display of Actual RMS results versus time (span of 2 minutes to 8 hours)
    Correction frequency 1 kHz to 100 GHz or OFF (direct frequency entry, interpolation between calibration points)
    Hot Spot Search Audible indication of increasing and decreasing field strength (result type Act or Max)
    Alarm function 2 kHz audible signal (4 Hz repetition), adjustable threshold
    Timer Logging Start time pre-selection:
    Logging duration:
    Logging interval:
    up to 24 h or immediate start
    up to 100 h
    1s to 6 min (in 11 steps)
    RESULT MEMORY
    Physical memory 12 MB non-volatile flash memory for measurement results and voice comments
    Storage capacity Up to 5000 results (including instrument settings, time stamp and GPS data when available)
    INTERFACES
    Remote control Via USB or optical RS-232 interface (selectable)
     - USB Serial, full duplex, 460800 baud (virtual COM port), multi-pin connector
     - Optical interface Serial, full duplex, 115200 baud, no parity, 1 start and 1 stop bit
    Earphone 3.5 mm TRS, ≥ 16 ohms (mono), see accessories
    External trigger (for result storage) Uses the multi-pin connector. Interface cable with BNC connector available as accessory
    Triggers when contacts short-circuited
    External GPS receiver Uses the multi-pin connector; GPS receiver with interface cable available as accessory
    Probe interface Plug-and-play auto detection, compatible with all NBM series probes

    RMS integration time for measuring input approx. 270 ms
    Measurement sampling rate 5 Hz (5/ 50/ 60 Hz for remote operation)
    OTHER FUNCTIONS
    Conditional Logging
    Logging conditions Selectable:
    - On upper threshold:
    Results stored when measurements exceed the adjustable threshold
    - Out of gap:
    Results stored when measurements are above the upper threshold or below the lower threshold
    Logging range Selectable:
    - Store all (as long as the condition is true), sampling rate 5 Hz
    - Store first and last event (when the condition was true)
    Voice Recorder
    Microphone Built in microphone located at the top of the instrument near the Narda logo
    Recording level Fixed level, VU meter for level monitoring displayed when recording
    Recording length 30 s max. length per voice comment, 1 voice comment stored with relevant result
    Recording format 8-bit PCM mono, stored as WAV file (approx. 240 kbyte per 30 s)
    Output External earphone (adjustable output level) or via NBM-TS PC software
    GPS Position Logging With attached GPS receiver (GPS Kit available as accessory)
    Receiver type GPS Standard Positioning Service and  Differential GPS (DGPS) capability using real-time WAAS/EGNOS correction
    Displayed position data Latitude (Lat) and longitude (Long), selectable units:  DMS (degrees, minutes, seconds)/ MinDec (decimal minutes)/ DegDec (decimal degrees)
    Geodetic system WGS84/ NAD83
    Position accuracy < 3 m (Differential GPS), <15 m (Standard GPS), high precision mode indicated on the NBM-550. Accuracy specified for 95 % probability
    Update rate 1 s
    Receiver size/ weight 61 mm diameter x 19.5 mm high / 62 g (approx. 100 g with mounting plate)
    Receiver mounting Uses the tripod thread on underside of device, mounting plate included
    GENERAL SPECIFICATIONS
    Recommended calibration interval 24 months (basic unit only, probes are specified separately)
    Battery NiMH rechargeable batteries, 4 x AA size (Mignon), 2700 mAh, included
    Operation time 20 hours (backlight off, no GPS)  12 hours (permanent backlight, no GPS)  10 hours (GPS receiver connected, no backlight)
    Charging time 2 hours
    Battery level display 100%, 80%, 60%, 40%, 20%, 10%, low level (< 5%)
    Temperature range  Operating  Non-operating (transport) -10 °C to +50 °C -30 °C to +70°C
    Humidity 5 to 95%, non condensing  ≤29 g/m3 absolute humidity (IEC 60721-3-2 class 7K2)
    Size (h x w x d) 45 x 98 x 280 mm (without probe and GPS receiver)
    Weight 550 g (without probe and GPS receiver).
    Accessories (included) Hard case, power supply, rechargeable batteries, shoulder strap, tripod (bench top), NBM-TS software, operating manual, certificate of calibration, USB cable interface
    Country of origin Germany
    Модели и опции
    Товар
    Модели и Опции
    Описание
    Цена Заказать
    Модели
    NBM-550
    Портативный широкополосный измеритель напряженности поля 100 кГц - 60 ГГц
    По запросу
    - шт +
    EС5091
    Зонд EС5091, для NBM, 300 кГц – 50 ГГц, изотропный, стандарт SC6 Canada, для заданных электрических полей
    По запросу
    - шт +
    EВ5091
    Зонд EВ5091, для NBM, 300 кГц – 50 ГГц, изотропный, стандарт ICNIRР, для заданных электрических полей
    По запросу
    - шт +
    EF5092
    Зонд EF5092, для NBM, 300 МГц – 50 ГГц, изотропный, с термоэлектрическим датчиком, для электрических полей
    По запросу
    - шт +
    EF0391
    Зонд EF0391, для NBM, 100 кГц – 3 ГГц, изотропный, для электрических полей
    По запросу
    - шт +
    EF1891
    Зонд EF1891, для NBM, 3 МГц – 18 ГГц, изотропный, для электрических полей
    По запросу
    - шт +
    EF5091
    Зонд EF5091, для NBM, 300 МГц – 50 ГГц, изотропный, с термоэлектрическим датчиком, для электрических полей
    По запросу
    - шт +
    EF6091
    Зонд EF6091, для NBM, 27 МГц – 60 ГГц, изотропный, для электрических полей
    По запросу
    - шт +
    НF0361
    Зонд НF0361, для NBM, 300 кГц – 30 ГГц, изотропный, для магнитных полей
    По запросу
    - шт +
    НF6091
    Зонд НF6091, для NBM, 27 МГц – 1 ГГц, изотропный, для магнитных полей
    По запросу
    - шт +
    EА5091
    Зонд EА5091, для NBM, 300 кГц – 50 ГГц, изотропный, с гибким кабелем, для заданных электрических полей
    По запросу
    - шт +
    EB5091
    Зонд EB5091, для NBM, 300 кГц – 50 ГГц, изотропный, стандарт IEEE, для заданных электрических полей
    По запросу
    - шт +
    Accessories
    2400/90.10
    GPS Kit for NBM-550, Receiver and Mounting Set
    По запросу
    - шт +
    2400/90.03
    Earphone, 3.5mm Plug
    По запросу
    - шт +
    2244/90.38
    Test-Generator 27 MHz
    По запросу
    - шт +
    2244/90.31
    Tripod, Non-Conductive, 1.65m, with Carrying Bag
    По запросу
    - шт +
    2244/90.45
    Tripod Extension, 0.50m, Non-Conductive (for 2244/90.31)
    По запросу
    - шт +
    2250/92.02
    Handle, Non-Conductive, 0.42m
    По запросу
    - шт +
    3001/90.04
    Carrying Strap Hardcase, for SRM/NBM-500
    По запросу
    - шт +
    2400/90.04
    Cable, Coaxial Multi-pin/ BNC, for NBM-550, Ext. Trigger, 2m
    По запросу
    - шт +
    2260/91.02
    Cable, FO Duplex (1000 pm) RP-02, 2 m
    По запросу
    - шт +
    2260/91.09
    Cable, FO Duplex (1000 pm) RP-02, 5 m
    По запросу
    - шт +
    2260/91.07
    Cable, FO Duplex (1000 pm) RP-02, 10 m
    По запросу
    - шт +
    2260/91.03
    Cable, FO Duplex (1000 pm) RP-02, 20 m
    По запросу
    - шт +
    2260/91.04
    Cable, FO Duplex (1000 pm) RP-02, 50 m
    По запросу
    - шт +
    2260/91.01
    Cable, FO Duplex, F-SMA to RP-02, 0.3 m
    По запросу
    - шт +
    2260/90.06
    O/E Converter RS232, RP-02/DB9
    По запросу
    - шт +
    2260/90.07
    O/E Converter USB, RP-02/USB
    По запросу
    - шт +
    2260/90.53
    Cable, Adapter USB 2.0 - RS232, 0.8 m
    По запросу
    - шт +
    2401/90.02
    Shielding Pouch for NBM-550
    По запросу
    - шт +
    NBM-548
    2400/101B
    NBM-500 Set 1, Narda Broadband Field Meter - Probes are not included - Set includes: - NBM-550 Basic Unit (2401/01B) - Hard case for NBM-500 Series, holds meter and up to 5 probes (2400/90.06) - Power Supply 9VDC, 100V-240VAC (2259/92.06) - Battery, Rechargeable AA-Size, NiMH (4 pcs. 1001-0000-471) - Shoulder Strap, 1m (2244/90.49) - Tripod, bench top, 0.16m (2244/90.32) - Cable, USB Interface for NBM-550, 2 m (2400/90.05) - Software, NBM-TS, PC Transfer (2400/93.01) - Operating Manual NBM-550 - Calibration Certificate
    По запросу
    - шт +
    NBM-549
    2400/113
    NBM-500 Set 13, 1Hz-6GHz with EHP-50F, NBM-550, EF0691 Set includes: - all parts from NBM-500 Set 1 (2400/101B) - all parts from EHP-50F E&H Field Analyzer Set, 1Hz-400kHz (2404/103) - Probe EF 0691, E-Field,100kHz-6GHz (2402/14B) - Tripod, Non-Conductive, 1.65m, with Carrying Bag (2244/90.31)
    По запросу
    - шт +
    NBM-550
    2400/115
    NBM-500 Set 15, 1Hz-3GHz with EHP-50F, NBM-550, EF0391 Set includes: - all parts from NBM-500 Set 1 (2400/101B) - all parts from EHP-50F E&H Field Analyzer Set, 1Hz-400kHz (2404/103) - Probe EF 0391, E-Field,100kHz-3GHz (2402/01B) - Tripod, Non-Conductive, 1.65m, with Carrying Bag (2244/90.31)
    По запросу
    - шт +
    HIGH FREQUENCY PROBES *
    2402/05B
    Probe HF 3061, H-Field, for NBM, 300kHz-30MHz
    По запросу
    - шт +
    2402/06B
    Probe HF 0191, H-Field, for NBM, 27MHz-1GHz
    По запросу
    - шт +
    2402/01B
    Probe EF 0391, E-Field, for NBM, 100kHz-3GHz
    По запросу
    - шт +
    2402/12B
    Probe EF 0392, E-Field, HiPow, for NBM, 100kHz-3GHz
    По запросу
    - шт +
    2402/14B
    Probe EF 0691, E-Field, for NBM, 100kHz-6GHz
    По запросу
    - шт +
    2402/02B
    Probe EF 1891, E-Field, for NBM, 3MHz-18GHz
    По запросу
    - шт +
    2402/19B
    Probe EF 4091, E-Field, for NBM, 40MHz-40GHz
    По запросу
    - шт +
    2402/03B
    Probe EF 5091, E-Field, for NBM, 300MHz-50GHz, Thermo.
    По запросу
    - шт +
    2402/11B
    Probe EF 5092, E-Field, HiPow, for NBM, 300MHz-50GHz, Thermo.
    По запросу
    - шт +
    2402/17B
    Probe EF 6092, E-Field, for NBM, 100MHz-60GHz
    По запросу
    - шт +
    2402/18B
    Probe EF 9091, E-Field, for NBM, 100MHz-90GHz
    По запросу
    - шт +
    2402/07B
    Probe EA 5091, FCC Shaped, for NBM, 300kHz-50GHz, E-Field
    По запросу
    - шт +
    2402/08B
    Probe EB 5091, IEEE Shaped, for NBM, 3MHz-50GHz, E-Field
    По запросу
    - шт +
    2402/10B
    Probe ED 5091, ICNIRP Shaped, for NBM, 300kHz-50GHz, E-Field
    По запросу
    - шт +
    LOW FREQUENCY PROBE *
    2404/103
    EHP-50F E&H Field Analyzer Set, 1Hz-400kHz, for NBM-550 Set Includes: - EHP-50F Basic Unit (2404/03) - AC/DC Battery Charger, for EHP-50 (2259/92.08) - Cable, FO Duplex, RP-02, 10m (2260/91.07) - Optical Bridge Connector RP-02 (2260/91.08) - EHP-TS PC Software (2404/93.01) - O/E Converter USB, RP-02/USB (2260/90.07) - Tripod Extension, 0.50m, Non-Conductive (2244/90.45) - Foam Inserts for EHP-50, for Hardcase 2400/90.06 (2404/90.01)
    По запросу
    - шт +
    Библиотека

    Основные сведения о продукте

    Посмотреть более подробную информацию о возможностях этого продукта.

    Технические характеристики

    Отзывы
    Добавить отзыв
    Оцените товар:
    Ваше имя
    Достоинства

    Недостатки

    Комментарий

    Символы на картинке


    Тут еще никто ничего не писал, стань первым!
    Список просмотренных товаров пуст
    Список избранного пуст
    Ваша корзина пуста
    Помощь
    Ошибка на сайте? Выдели её и нажми Ctrl+Enter
