Приемник для измерений ЭМП на полное соответствие CISPR/MIL 10 Гц - 18 ГГц

9010
Для увеличения картинки наведите мышкой
90109010901090109010
90109010901090109010
НаличиеПо запросу
По запросу
По запросу
По запросу
Приемники измерительные ЭМП 9010 Подробнее
Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

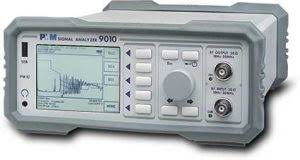

Narda-PMM has developed new EMI / EMC receivers based on an innovative concept and a revolutionary approach to meet the needs of small and medium-sized laboratories that do not find it convenient to invest in a receiver conforming to the CISPR 16-1-1 also for radiated measurements.

They are a perfect mix of full and Pre-Compliance to meet, in a perfect way, the requirements of practical tests, not excluding the possibility of future upgrades to 100% Full-Compliant to CISPR 16-1-1 up to 3, 6 or 18 GHz the simple addition of an external unit, 9030, 9060 or 9180, connected via fiber optic cable.

The 9010 / xxP series receivers, are full compliance in accordance with the CISPR 16-1-1 in the band A and B and pre compliance in the next

Receivers 9010/xxp are available in the following versions:

  • 9010/03P, 10 Hz – 300 MHz
  • 9010/30P, 10 Hz – 3 GHz
  • 9010/60P, 10 Hz – 6 GHz
  • Свернуть Развернуть
    Основные возможности и технические характеристики

    Narda-PMM has developed new EMI / EMC receivers based on an innovative concept and a revolutionary approach to meet the needs of small and medium-sized laboratories that do not find it convenient to invest in a receiver conforming to the CISPR 16-1-1 also for radiated measurements.

    They are a perfect mix of full and Pre-Compliance to meet, in a perfect way, the requirements of practical tests, not excluding the possibility of future upgrades to 100% Full-Compliant to CISPR 16-1-1 up to 3, 6 or 18 GHz the simple addition of an external unit, 9030, 9060 or 9180, connected via fiber optic cable.

    The 9010 / xxP series receivers, are full compliance in accordance with the CISPR 16-1-1 in the band A and B and pre compliance in the next

    Receivers 9010/xxp are available in the following versions:

  • 9010/03P, 10 Hz – 300 MHz
  • 9010/30P, 10 Hz – 3 GHz
  • 9010/60P, 10 Hz – 6 GHz
  • Internal tracking generator
  • Battery pack, AC adapter/charger

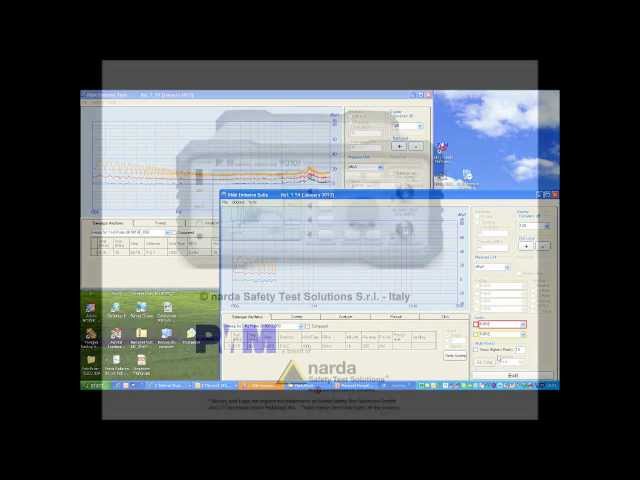

  • PC software PMM Emission Suite
  • Control cables (USB, RS-232), BNC-BNC cable

  • Internal tracking generator
  • Battery pack, AC adapter/charger
  • PC software PMM Emission Suite
  • Control cables (USB, RS-232), BNC-BNC cable

  • Свернуть Развернуть
    Сведения о реестре СИ

    Номер в Госреестре

    Наименование СИ

    Обозначение типа СИ

    Изготовитель

    Срок свидетельства или заводской номер

    Не в реестре
    Свернуть Развернуть
    Сведения о реестре СИ

    Номер в Госреестре

    Наименование СИ

    Обозначение типа СИ

    Изготовитель

    Срок свидетельства или заводской номер

    Не в реестре
    • Speed test 9010F vs 9010
    • PMM 9010F vs 9010
    Характеристики
    Загрузить технические характеристики

    Frequency range 10 Hz to 30 MHz
    Resolution 0,1 Hz
    Reference frequency < 1 ppm
    RF input
    VSWR Zin 50 Ω, BNC fem.
    10 dB RF att. < 1,2
    0 dB RF att. < 2
    Attenuator 0 dB to 35 dB (5 dB steps)
    Preamplifier gain 20 dB (after preselector)
    Pulse limiter Built in (selectabl
    Max input level
    (without equipment damage)  Sinewave AC voltage 137 dBμV (1 W)
    Pulse spectral density 97 dBpV/MHz
    Preselector (One LP and six BP filters)
    Frequency ranges < 9 kHz
    9 kHz to 150 kHz
    150 kHz to 500 kHz
    500 kHz to 3 MHz
    3 MHz to 10 MHz
    10 MHz to 20 MHz
    20 MHz to 30 MHz
    IF bandwidth
    3 dB bandwidth 3, 10, 30, 100, 300 kHz
    6 dB bandwidth 0,2 and 9 kHz (CISPR 16-1-1)  10, 100 Hz; 1,10 kHz  (MIL-STD-461)  (100 kHz, 1 MHz MIL-STD-461 when operated with 9030 or  9060)
    Noise level  (Preamplifier ON) 9 - 150 kHz < -8 dBμV (QP)  (200 Hz BW) < -15 dBμV (AV)
    0,15 - 30 MHz < -4 dBμV (QP)  (9 kHz BW) < -10 dBμV (AV)
    Detectors
    simultaneous on PMM Emission Suite)
    Peak, Quasi-Peak, Average, RMS, RMS-Average (*), C-Average, APD Smart Detector function
    Level measuring time
    (Hold time)
    CISPR 16-1-1 as default
    Variable, 1 ms to 30 sec.
    Stand-alone display & measure functions Marker; marker peak; marker to
    center; highest peaks;move peak
    to Analyzer & Manual modes
    Store & Load:
    - up to 11 traces (sweep mode)
    - two panels
    - 4 conversion factors
    Built-in limits: CISPR 11, 14, 22
    Battery charge and voltage
    Display style, contrast, backlight
    Click functions (option required)
    Display units dBm,dBμV, (dBμA,dBpW,dBμVM dBμA/m by PMM Emission Suite)
    Displayed dynamic 80, 100, 120 dB selectable
    Spectrum Analyzer mode
    Span/division 100 Hz ÷ 3 MHz
    Measurement  accuracy S/N > 20 dB
    10 Hz to 9 kHz ±1,0 dB Typ.
    9 kHz to 30 MHz ±1,0 dB
    RF output Zout 50 Ω, BNC fem
    Tracking &  CW Generator.
    Frequency range 10 Hz to 50 MHz
    Level 60 to 90 dBμV (0.1 dB step)
    Level accuracy (10 Hz to 30 MHz) ± 0,5 dB
    Demodulation AM; volume setting by knob
    Autocalibration Internal reference source
    I/O Interface RS-232  High Speed Optical (2 channels;  2nd for future extension)  USB Rear  USB Front (future extension)  User Port (drives PMM LISNs) Bluetooth (optional)  IEEE-488 (optional)
    Click meter  (Optional) 1 to 4 simultaneous channels  Full compliant to EN 55014-1
    Operating temperature 0° to 40°C
    Power supply 10 - 15 Vdc, 2.5A  Li-Ion rechargeable plug-in battery  (8h avg. duration)  AC universal adapter/charger
    Dimensions 235x105x335 mm
    Weight 4,1 kg
    (*) RMS-Average detector manufactured under license of Rohde & Schwarz GmbH & Co. KG
