Outline

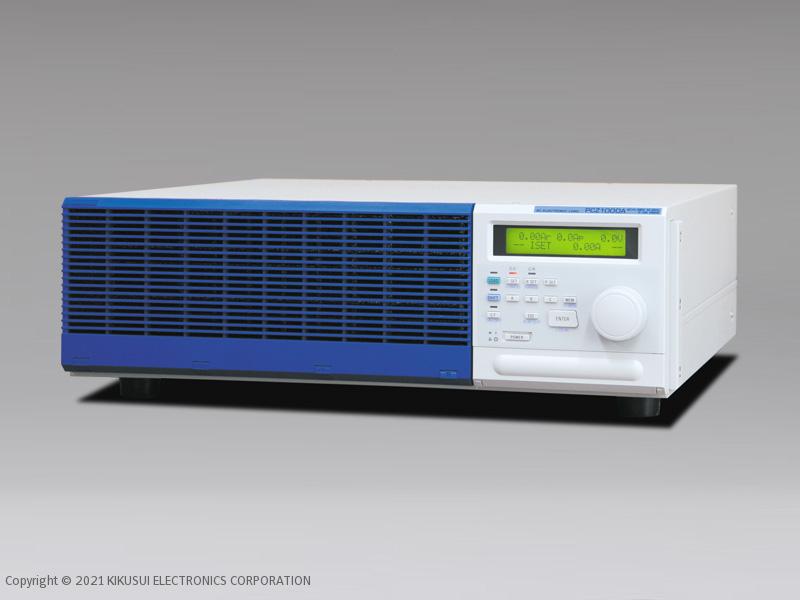

PCZ1000A is an AC electronic load that enables you to perform load simulation for various inverters and transformers. In addition to the resistive loads generally used in tests, it is capable of simulating capacitor-input rectifier loads.
The instrument supports input up to 1000W and is equipped with 3 operation modes - Constant Current, Constant Resistance, and Constant Power.Current waveform resemble to sine wave can be output constantly without effect by voltage waveform at each mode. Moreover, the instrument is equipped with Crest Factor function that is suitable for simulating current load test for switching power supply.
This instrument provides improved operation through CPU control and enables external control and read-back via RS-232C.
Features
- Maximum input load power: 1000W
- Input voltage range: 14V to 280V(rms)
- Input current range: 0 to 10A(rms)
- Input frequency range: 45 to 65Hz
- Parallel operation expands the load capacity
Up to 5 units can be operated in parallel (Max. 5kW, 50Arms) - Supports single-phase 3-wire method, 3-phase 3-wire method
Equipped with tracking operation function - Crest Factor Function [1.4 to 4.0]
Facilitating load tests for peak or harmonic currents helps reduce design and labor time and cost as well as improve the quality of the unit under test
Outline
PCZ1000A is an AC electronic load that enables you to perform load simulation for various inverters and transformers. In addition to the resistive loads generally used in tests, it is capable of simulating capacitor-input rectifier loads.
The instrument supports input up to 1000W and is equipped with 3 operation modes - Constant Current, Constant Resistance, and Constant Power.Current waveform resemble to sine wave can be output constantly without effect by voltage waveform at each mode. Moreover, the instrument is equipped with Crest Factor function that is suitable for simulating current load test for switching power supply.
This instrument provides improved operation through CPU control and enables external control and read-back via RS-232C.
Features
- Maximum input load power: 1000W
- Input voltage range: 14V to 280V(rms)
- Input current range: 0 to 10A(rms)
- Input frequency range: 45 to 65Hz
- Parallel operation expands the load capacity
Up to 5 units can be operated in parallel (Max. 5kW, 50Arms) - Supports single-phase 3-wire method, 3-phase 3-wire method
Equipped with tracking operation function - Crest Factor Function [1.4 to 4.0]
Facilitating load tests for peak or harmonic currents helps reduce design and labor time and cost as well as improve the quality of the unit under test
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
| Model | Specification |
|---|---|
| PCZ1000A | AC Electronic Load (E-Load), Maximum input load power:1000W, Input voltage range: 14V to 280V(rms), Input current range: 0 to 10A(rms), Input frequency range: 45 to 65Hz |
Товар |
|
|
|
Модели и Опции |
Описание |
Цена | Заказать |
0
| Модели |
|
PCZ1000A
|
Электронная нагрузка AC 1000 кВт 14 В - 280 В скз 10 А скз
|
По запросу |
1
| Опции |
|
PIA5100
|
Interface converter providing GPIB functionality through RS232C or USB interface for Kikusui measurement devices and power supplies without GPIB installed. [Accessories: 5 Vdc power cord set, magnetic sheet]
|
По запросу | ||
|
Wavy for PCZ1000A
|
ПО создание/управление тестовыми последовательностями для PCZ1000A
|
По запросу | ||
|
PC01-PCZ1000A
|
Кабель для параллельной работы, длина:300 мм
|
По запросу |
