Анализатор спектра 4024A/B/C/D/E/F/G от 9 кГц до 44 ГГц

Серия 4024
Для увеличения картинки наведите мышкой
Серия 4024Серия 4024Серия 4024Серия 4024Серия 4024Серия 4024Серия 4024
Серия 4024Серия 4024Серия 4024Серия 4024Серия 4024Серия 4024Серия 4024

Наличие: По запросу

По запросу
По запросу
По запросу

Анализаторы спектра Серия 4024 Подробнее




Китайская компания Ceyear Technologies Co., Ltd была… подробнее





Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

4024D/E/F/G Spectrum Analyzer possesses many advantages: a wide frequency range, high performance, high sweep speed, various functions, and easy operation. In terms of performance specifications, it has advantages of excellent displayed erage noise level, low phase noise, and high sweep speed; In terms of measurement functions, it enjoy rich measurement functions of spectrum analyzer, interference analyzer, AM/FM/PM analyzer, power meter, channel scanner etc., as well as intelligent measurement functions of channel power, occupied bandwidth, adjacent-channel power ratio, tune & listen, emission mask, and carrier-to-noise ratio etc.. 4024 deploys the integrated design of 8.4 inch LCD and capacitive touch screen, which improves the display definition and operation convenient. The series are handheld, compact and lightweight, with flexible power supply, which are very suitable for field work.

4024 can be used for signal and equipment test in the fields of aerospace, microwe & satellite communication, radio communication, radar monitoring, electronic countermeasures & reconnaissance, and precision guidance.

FUNCTIONS & FEATURES

  • Wide frequency range: from 9KHz to 44GHz, 4 models

  • Low displayed erage noise level: -163dBm@1Hz RBW(typical)

  • Excellent phase noise performance: -106dBc/Hz@100KHz frequency offset@1GHz carrier

  • High sweep speed: for 1GHz span, shortest sweep time <20ms

  • Resolution bandwidth: 1Hz~10MHz

  • Full-band pre-amplifier: standard configuration

  • Rich measurement functions: spectrum analyzer, interference analyzer (spectrogram, RSSI), AM/FM/PM analyzer, channel scanner, high accuracy power meter etc

  • Various intelligent measurement functions: field strength measurement, channel power, occupied bandwidth, adjacent-channel power ratio, tune & listen, carrier-to-noise ratio, emission mask

  • Various auxiliary test interface: 10MHz reference input/output interface, GPS antenna interface, zero span IF output interface, external triggering input interface etc

  • Easy & convenient user operation: 8.4 inch high definition LCD and large font display, convenient capacitive touch screen operation, combination of LCD and touch screen and various display modes, etc

  • Operating temperature range: -10℃~50℃. Power supplied by battery or adapter

  • Various measurement functions

Interference analyzer (spectrogram)



AM/FM/PM demodulation

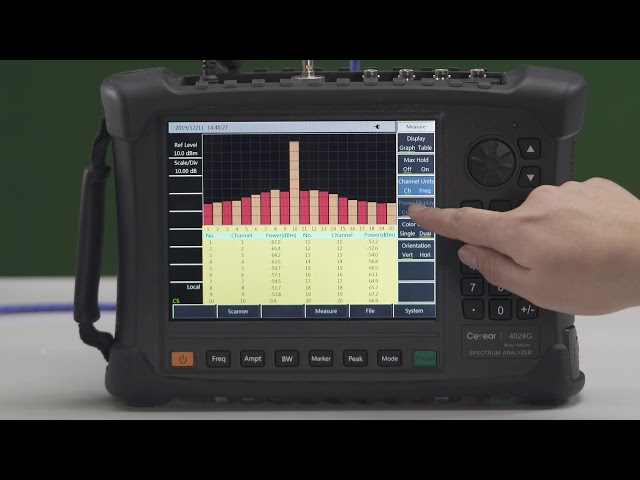

Channel scanner

Power meter (USB power probe)

Comprehensive intelligent measurement function

Field strength measurement

Channel power

Occupied bandwidth

Adjacent-channel power ratio

Emission mask

Carrier-to-noise ratio

Limit line


List sweep


Multi-traces

Various auxiliary test interfaces


Easy & convenient user operation

  • One-click quick measurement

  • Storage and invocation of state and data

  • Combination of 8.4 inch LCD and capacitive touch screen, smaller light refraction and clearer display

  • Convenient capacitive touch screen operation

  • Various display modes, better experience under outdoor light and night vision

  • Backlit keys enables easy viewing in darkness



Outdoor mode

Night vision mode

TYPICAL APPLICATIONS

Comprehensive performance evaluation of electronic weapon equipment

4024 series he advantages of a wide frequency range, high performance specifications, a high sweep speed, multiple test functions, and easy operation. They are handheld, compact and lightweight, which can be powered up by a built-in battery. The series can be used for the field installation & calibration, repair & maintenance of electronic weapon equipment in fields of radar, communication, electronic countermeasures & reconnaissance, and precision guidance etc.

Field test and diagnosis of transmitter and receiver

4024 series he rich measurement function modes like spectrum analyzer, interference analyzer, AM/FM/PM analyzer, power meter, channel scanner etc., as well as various intelligent measurement functions such as channel power, occupied bandwidth, adjacent-channel power ratio, carrier-to-noise ratio, field strength measurement, emission mask etc.. They can provide comprehensive spectrum analysis and diagnosis service for the field test of transmitter and receiver.

Broadband spectrum monitoring, interference recognition

Connected with external directive antenna, 4024 series can be used for electromagnetic environment detection, radio interference analysis, electromagnetic environment background assessment, spectrum monitoring and illegal channel interference signal recognition.



Свернуть Развернуть
Основные возможности и технические характеристики

4024D/E/F/G Spectrum Analyzer possesses many advantages: a wide frequency range, high performance, high sweep speed, various functions, and easy operation. In terms of performance specifications, it has advantages of excellent displayed erage noise level, low phase noise, and high sweep speed; In terms of measurement functions, it enjoy rich measurement functions of spectrum analyzer, interference analyzer, AM/FM/PM analyzer, power meter, channel scanner etc., as well as intelligent measurement functions of channel power, occupied bandwidth, adjacent-channel power ratio, tune & listen, emission mask, and carrier-to-noise ratio etc.. 4024 deploys the integrated design of 8.4 inch LCD and capacitive touch screen, which improves the display definition and operation convenient. The series are handheld, compact and lightweight, with flexible power supply, which are very suitable for field work.

4024 can be used for signal and equipment test in the fields of aerospace, microwe & satellite communication, radio communication, radar monitoring, electronic countermeasures & reconnaissance, and precision guidance.

FUNCTIONS & FEATURES

  • Wide frequency range: from 9KHz to 44GHz, 4 models

  • Low displayed erage noise level: -163dBm@1Hz RBW(typical)

  • Excellent phase noise performance: -106dBc/Hz@100KHz frequency offset@1GHz carrier

  • High sweep speed: for 1GHz span, shortest sweep time <20ms

  • Resolution bandwidth: 1Hz~10MHz

  • Full-band pre-amplifier: standard configuration

  • Rich measurement functions: spectrum analyzer, interference analyzer (spectrogram, RSSI), AM/FM/PM analyzer, channel scanner, high accuracy power meter etc

  • Various intelligent measurement functions: field strength measurement, channel power, occupied bandwidth, adjacent-channel power ratio, tune & listen, carrier-to-noise ratio, emission mask

  • Various auxiliary test interface: 10MHz reference input/output interface, GPS antenna interface, zero span IF output interface, external triggering input interface etc

  • Easy & convenient user operation: 8.4 inch high definition LCD and large font display, convenient capacitive touch screen operation, combination of LCD and touch screen and various display modes, etc

  • Operating temperature range: -10℃~50℃. Power supplied by battery or adapter

  • Various measurement functions

Interference analyzer (spectrogram)



AM/FM/PM demodulation


Channel scanner

Power meter (USB power probe)

Comprehensive intelligent measurement function

Field strength measurement

Channel power

Occupied bandwidth

Adjacent-channel power ratio

Emission mask

Carrier-to-noise ratio

Limit line


List sweep


Multi-traces

Various auxiliary test interfaces


Easy & convenient user operation

  • One-click quick measurement

  • Storage and invocation of state and data

  • Combination of 8.4 inch LCD and capacitive touch screen, smaller light refraction and clearer display

  • Convenient capacitive touch screen operation

  • Various display modes, better experience under outdoor light and night vision

  • Backlit keys enables easy viewing in darkness



Outdoor mode

Night vision mode

TYPICAL APPLICATIONS

Comprehensive performance evaluation of electronic weapon equipment

4024 series he advantages of a wide frequency range, high performance specifications, a high sweep speed, multiple test functions, and easy operation. They are handheld, compact and lightweight, which can be powered up by a built-in battery. The series can be used for the field installation & calibration, repair & maintenance of electronic weapon equipment in fields of radar, communication, electronic countermeasures & reconnaissance, and precision guidance etc.

Field test and diagnosis of transmitter and receiver

4024 series he rich measurement function modes like spectrum analyzer, interference analyzer, AM/FM/PM analyzer, power meter, channel scanner etc., as well as various intelligent measurement functions such as channel power, occupied bandwidth, adjacent-channel power ratio, carrier-to-noise ratio, field strength measurement, emission mask etc.. They can provide comprehensive spectrum analysis and diagnosis service for the field test of transmitter and receiver.

Broadband spectrum monitoring, interference recognition

Connected with external directive antenna, 4024 series can be used for electromagnetic environment detection, radio interference analysis, electromagnetic environment background assessment, spectrum monitoring and illegal channel interference signal recognition.



  • 1. Standard 3-Phase Power Cord
  • 2. Power Adapter
  • 3. Quick guide
  • 4. USB Cable
  • 5. Built-In Rechargeable Lithium Ion Battery
  • 6. Certificate of Conformity
  • 1. Standard 3-Phase Power Cord
  • 2. Power Adapter
  • 3. Quick guide
  • 4. USB Cable
  • 5. Built-In Rechargeable Lithium Ion Battery
  • 6. Certificate of Conformity
Свернуть Развернуть
Сведения о реестре СИ
Номер в госреестре
Не в реестре
Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

Свернуть Развернуть
Сведения о реестре СИ
Номер в госреестре
Не в реестре
Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

  • Обзор продукции|Ceyear 4024 серия портативных анализаторов сигналов
Характеристики
Загрузить технические характеристики

Model 4024D/E/F/G
Frequency Range 4024D: 9KHz~20GHz      4024E: 9KHz~26.5GHz
4024F: 9KHz~32GHz      4024G: 9KHz~44GHz
Tuning Resolution:1Hz
Frequency Reference Frequency: 10MHz
Aging: ±0.5ppm/Year
Initial Frequency Accuracy: ±0.3ppm
Temperature Stability:±0.1ppm(-10~50℃, comparative to 25℃)
Sweep Time Range: 10μs~600s (Zero Span)
Accuracy: ±2.00% (Zero Span)
Frequency Readout Accuracy Frequency Readout Accuracy = ±(Frequency Readout× frequency Reference Error +2%× Span +10%× Resolution Bandwidth)
Sweep Span Range: 100Hz~Upper Frequency Limit of Corresponding Model or 0Hz
Accuracy: ±2.0%
Resolution Bandwidth 1Hz~10MHz (1-3 Times of Step)
Video Bandwidth 1Hz~10MHz (1-3 Times of Step)
SSB Phase Noise ≤-102dBc/Hz@ Frequency Offset 10KHz
(1GHz  Carrier) ≤-106dBc/Hz@ Frequency Offset 100KHz
≤-111dBc/Hz@ Frequency Offset 1MHz
≤-123dBc/Hz@ Frequency Offset 10MHz
Displayed erage Noise Level Pre-amp Off:
≤-138dBm(10MHz~20GHz)    ≤-135dBm(20GHz~32GHz)
≤-127dBm(32GHz~40GHz)
Pre-amp On:
≤-157dBm(10MHz~20GHz)     ≤-154dBm(20GHz~32GHz)
≤-148dBm(32GHz~40GHz)
Residual Response Pre-amp Off:
≤-90dBm (10MHz~13GHz)     ≤-85dBm (13GHz~20GHz)
≤-80dBm (20GHz~44GHz)
Pre-amp On:
≤-100dBm (10MHz~32GHz)    ≤-95dBm (32GHz~44GHz)
(Exceptional Frequency: 3.2GHz)
Second Harmonic Distortion <-60dBc (Attenuation 0dB, -30dBm Input Signal)
Absolute Amplitude Accuracy ±1.8dB (10MHz~13GHz)
(20℃~30℃, 30 minutes of preheating) ±2.3dB (13GHz~40GHz)
Input Attenuator Attenuation Range: 0dB~50dB, 10dB Stepping
Maximum Continuous Input +30dBm Peak Typical(≥10dB attenuation)
+23dBm Peak Typical(<10dB attenuation)
+13dBm Peak Typical(Pre-amp On)
Reference Level Range: -120dBm~+30dBm
Conversion Uncertainty: ±1.20dB
Battery Operating Time About 2.5h
Size 314mm (W)×218mm (H)×91mm (D) (excluding handle, stand)
338mm(W)×218mm (H)×100mm (D) (excluding handle, stand)
Weight About 5kg (excluding battery)
Operating Temperature -10℃~+50℃
Storage Temperature -40℃~+70℃
Electromagnetic Compatibility Conforms to GJB3947A-2009 3.9.1 Requirements
Power Consumption ≤30W (no charging to the battery)
Test Interface 4024D/E: Type N Connector (Female)
4024F/G: 2.4mm Connector (Male)
Other Interfaces 10MHz Reference Input/output: BNC Female Connector
External Triggering Input: BNC Female Connector
IF Output: BNC Female Connector
GPS Antenna Input: BNC Female Connector

Модели и опции
Товар
Модели и Опции
Описание
Цена Заказать
Модели
4024A
Spectrum Analyzer (9kHz-4GHz)
По запросу
- шт +
4024B
Spectrum Analyzer (9kHz-6.5GHz)
По запросу
- шт +
4024C
Spectrum Analyzer (9kHz-9GHz)
По запросу
- шт +
4024D
Spectrum Analyzer (9kHz-20GHz)
По запросу
- шт +
4024E
Spectrum Analyzer (9kHz-26.5GHz)
По запросу
- шт +
4024F
Spectrum Analyzer (9kHz-32GHz)
По запросу
- шт +
4024G
Spectrum Analyzer (9kHz-44GHz)
По запросу
- шт +
hardware options
4024-003
User Manual (English)
По запросу
- шт +
4024-004
Programming Manual (Chinese)
По запросу
- шт +
4024-005
Programming Manual (English)
По запросу
- шт +
4024-006
Power Adapter (Power Adapter)
По запросу
- шт +
4024-007
Rechargeable Lithium Ion Battery (Standby Battery)
По запросу
- шт +
4024-008
Purple Cat5e Cable (Point to Point)
По запросу
- шт +
4024-009
Micro SD Card (2 Meters)
По запросу
- шт +
4024-010
GPS Antenna (Class4)
По запросу
- шт +
4024-011
USB Power Meter Option (Capacity: 8G)
По запросу
- шт +
4024-012
87230 USB CW Power Probe (GPS exposed Antenna)
По запросу
- шт +
4024-013
87231 USB CW Power Probe (Provide USB Power Measurement Function (Requires USB Power Probe:012/013/014/015))
По запросу
- шт +
4024-014
87232 USB CW Power Probe (9kHz-6GHz Power Probe)
По запросу
- шт +
4024-015
87233 USB CW Power Probe (10MHz-18GHz Power Probe)
По запросу
- шт +
4024-016
Interference Analyzer Option (50MHz-26.5GHz Power Probe)
По запросу
- шт +
4024-017
AM/FM/PM Analyzer Option (50MHz-40GHz Power Probe)
По запросу
- шт +
4024-018
Channel Scanner Option (Provide Spectrogram)
По запросу
- шт +
4024-019
List Sweep Option (RSSI Measurement etc. Functions)
По запросу
- шт +
4024-020
Zero Span IF Output (To Realize Modulation Characteristics Analysis of AM/FM/PM Signals)
По запросу
- шт +
4024-021
89101A Antenna (To Realize Signal Power Measurement of Multiple Channels and Frequency)
По запросу
- шт +
4024-022
89101B Antenna (To Realize Continuous Sweep Measurement of Various Frequency Bands)
По запросу
- шт +
4024-023
89101C Antenna (Output the Third or Fourth IF Signal (Choose One of Two))
По запросу
- шт +
4024-024
89101D Antenna (Frequency Range:10kHz-20MHz)
По запросу
- шт +
4024-025
89401 Antenna Amplifier (Frequency Range:20MHz-200MHz)
По запросу
- шт +
4024-026
89901 Antenna (Frequency Range:200MHz-500MHz)
По запросу
- шт +
4024-027
89902 Antenna (Frequency Range:500MHz-4GHz)
По запросу
- шт +
4024-028
Functional Bag (Frequency Range:10kHz-4GHz)
По запросу
- шт +
4024-029
Backpack N(f)
По запросу
- шт +
4024-030
Safety Instrument Carrying Case (Frequency Range:1GHz-18GHz)
По запросу
- шт +
4024-031
89901 Antenna handle N(f)
По запросу
- шт +
4024-032
89902 Antenna handle (Frequency Range:18GHz-40GHz)
По запросу
- шт +
4024-034
Field Strength Option 2.92mm(f)
По запросу
- шт +
4024-001
Optional Accessories of English Version
По запросу
- шт +
4024-002
User Manual (Chinese)
По запросу
- шт +
Standard Package
1
Standard 3-Phase Power Cord
По запросу
- шт +
2
Power Adapter
По запросу
- шт +
3
Quick guide
По запросу
- шт +
4
USB Cable
По запросу
- шт +
5
Built-In Rechargeable Lithium Ion Battery
По запросу
- шт +
6
Certificate of Conformity
По запросу
- шт +
Библиотека

Основные сведения о продукте

Посмотреть более подробную информацию о возможностях этого продукта.

Технические характеристики

Отзывы
Добавить отзыв
Оцените товар:
Ваше имя
Достоинства

Недостатки

Комментарий

Символы на картинке


Тут еще никто ничего не писал, стань первым!
Список просмотренных товаров пуст
Список избранного пуст
Ваша корзина пуста
Помощь
Ошибка на сайте? Выдели её и нажми Ctrl+Enter
